CPM Filtration



Haffmans Steam Filter CPM

• Unique and flexible modular filter design
• Robust stainless steel construction, no damage or aging of filter element
• Only the filter membrane is replaced as a wear part
• Easy up- and downscaling of filter capacity
• High temperature resistance of filter membranes that can be sterilized up to 140 °C (284 °F)
• High filter capacities possible
• 100 percent reverse flow filtration and sterilization possible

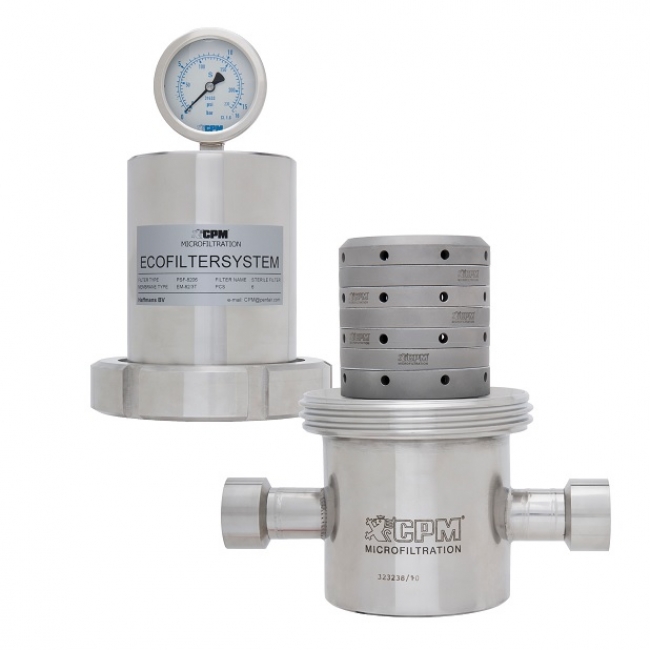

The CPM venting filter, type BA, allows for 100 percent sterile venting of storage tanks and containers in many industries, typically the water and dairy industries. Equipped with the patented, flexible Ecofilter® element, consisting of filter membranes in between segmented stainless steel disks, the BA offers the highest filtration efficiency and security.

The BA’s filter membranes, made of high-quality PTFE, are permanently hydrophobic and reject bacteria transfer and growth. The filter membranes have an absolute retention rate of 0.2 μm and an extremely high, 95 percent, pore distribution. This allows high flow capacities against very little pressure loss.

CPM venting filters are sterilizable in situ using steam up to 140 °C (284 °F) and can be autoclaved.
