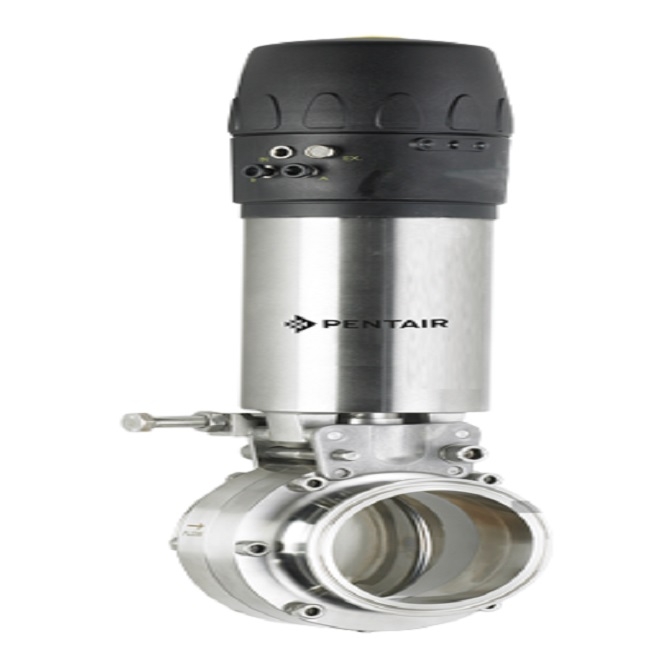

Südmo Butterfly Valve
Pentair Südmo’s hygienic shut-off Butterfly Valves are used across the process industries including brewing, beverage, pharmaceutical, chemical, cosmetic, and food. Pentair Südmo's comprehensive valve line features both manual and pneumatic drive options, including lockable handles and vertical actuators. The butterfly valve range is available in sizes ranging from ½ to 6 inch OD Tube, Schedule 5, metric and ISO pipe dimensions, and offers a wide variety of connection types including butt weld, triclamp or small-flange.
The special seal design with an expansion groove minimizes wear and ensures long
service life. Various FDA compliant seal options are available. No special tools are required to change the seals, making the valve quick and easy to maintain.
A variety of options, including our stateof- the-art IntelliTop® control unit, allow monitoring and control of the valves through the control system. Existing Butterfly Valvescan easily be retrofitted to the IntelliTop 2.0.
Application
• Butterfly valve discs
-- Solid butterfly disc, 316 L stainless steel material (1.4404)
-- Highly resistant to aggressive media
-- Slide bearing between valve disc shaft and housing flange provides low switching friction and optimum centering
• Butterfly valve seals
-- Special seal geometry guarantees long service lives
-- The seal is marked for rapid identification of size and material
-- All seal materials are FDA-compliant
• Butterfly valve housing
-- Many different connection types available
-- Housing marked for easy identification of material, size and pressure rating
-- Optional houing with acceptance test certificate to DIN EN ISO 10204 – 3.1 (WAZ) available
